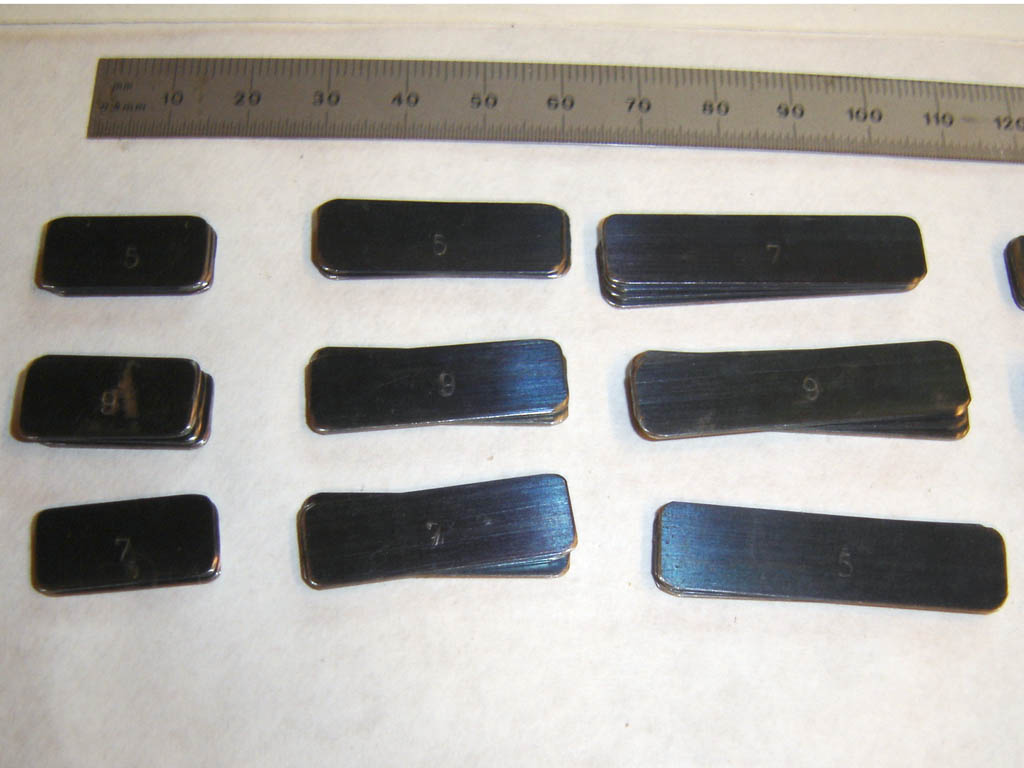

The shims. (Usually referred to as "splines")
There are three thicknesses of shims, 5mm (5.5mm on all those I measured),
7mm and 9mm
I assume there are supposed to be 4 of each size in a given length, but
some are missing from the various lengths.
The lengths are 20mm,30mm,40mm,50mm,60mm,100mm (105mm measured), 200
mm, 400 mm and 800mm(measured 868mm)
|
|

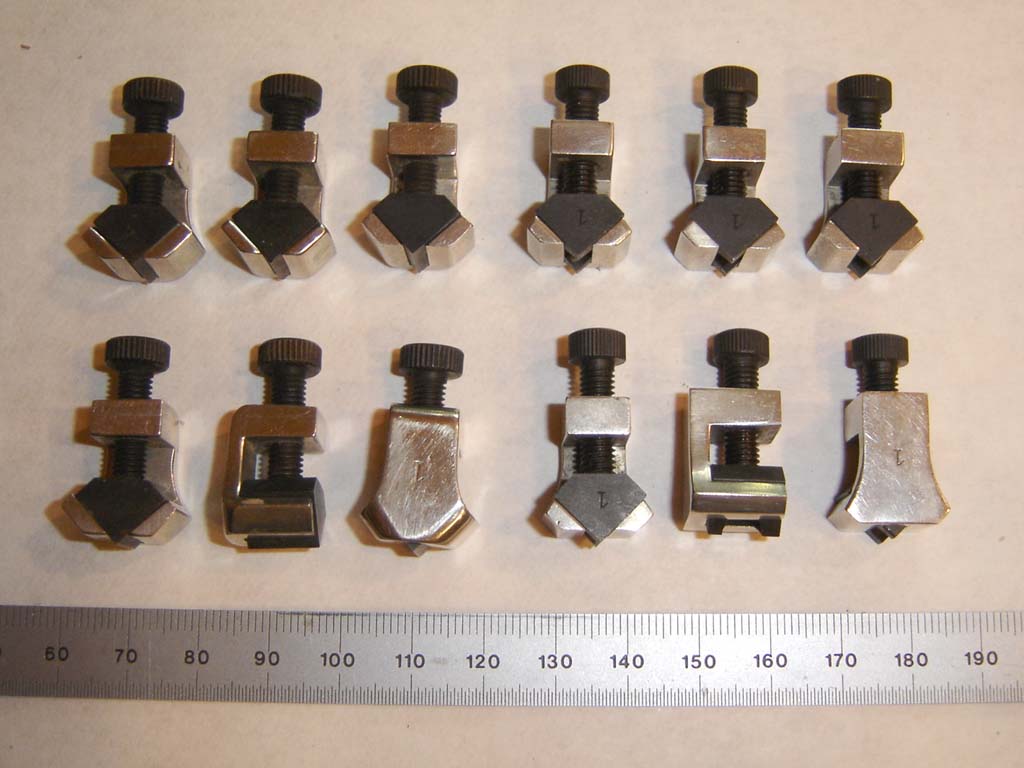

Spline clamps. 90 degrees. 12 total, two different types of
bodies. Stamped "1" |
|

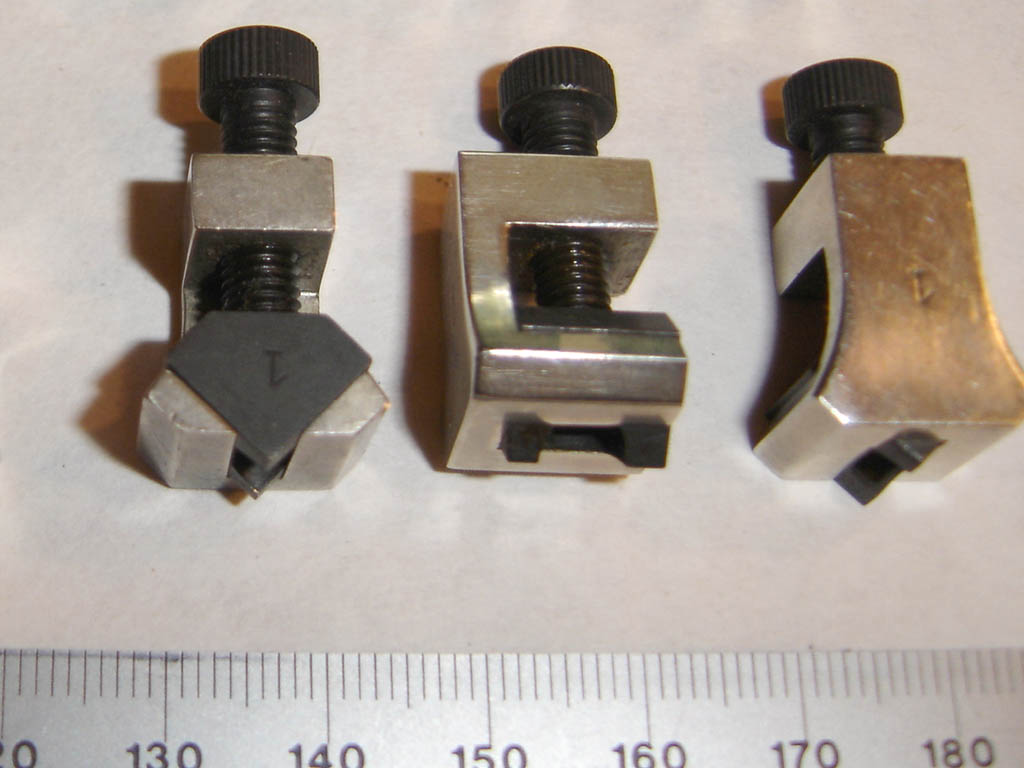

Closeup of the #1 spline clamps. |
|

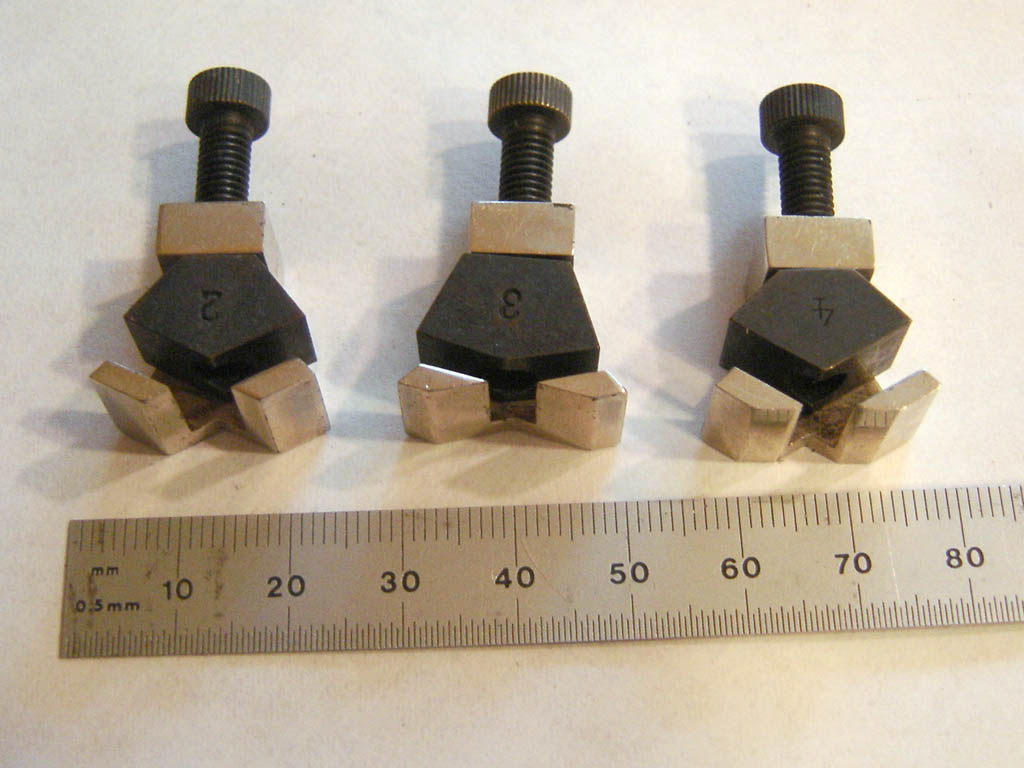

#2, #3, #4 spline clamps, 1 each. 130 deg, 150 deg and 120
deg. |
|

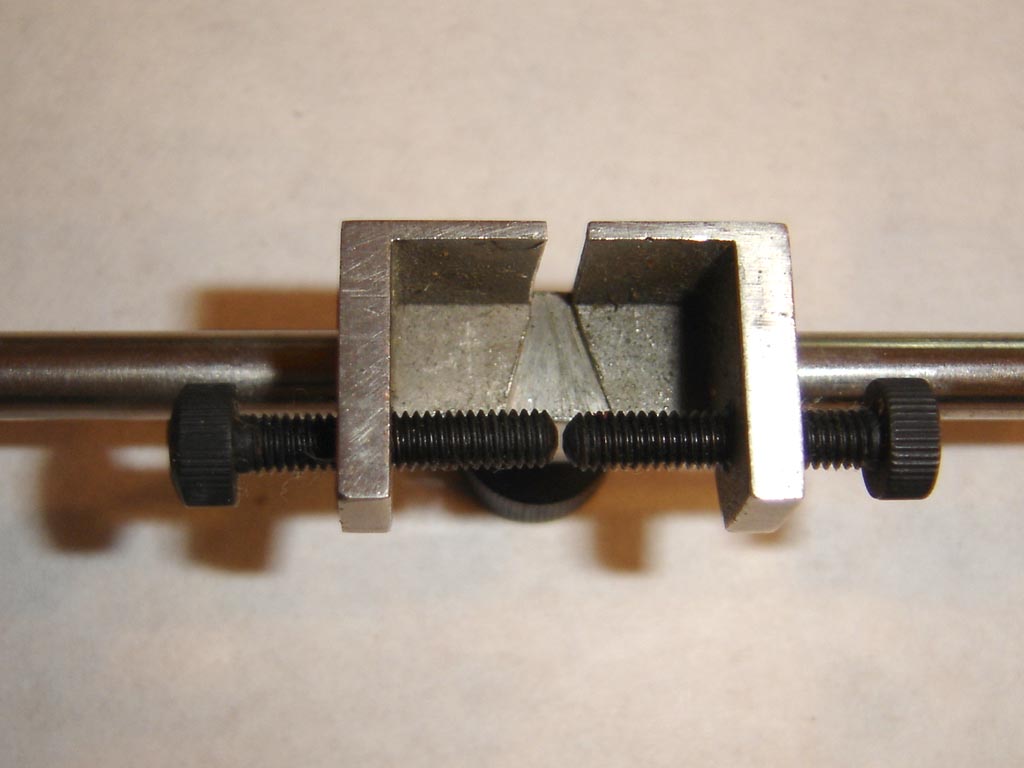

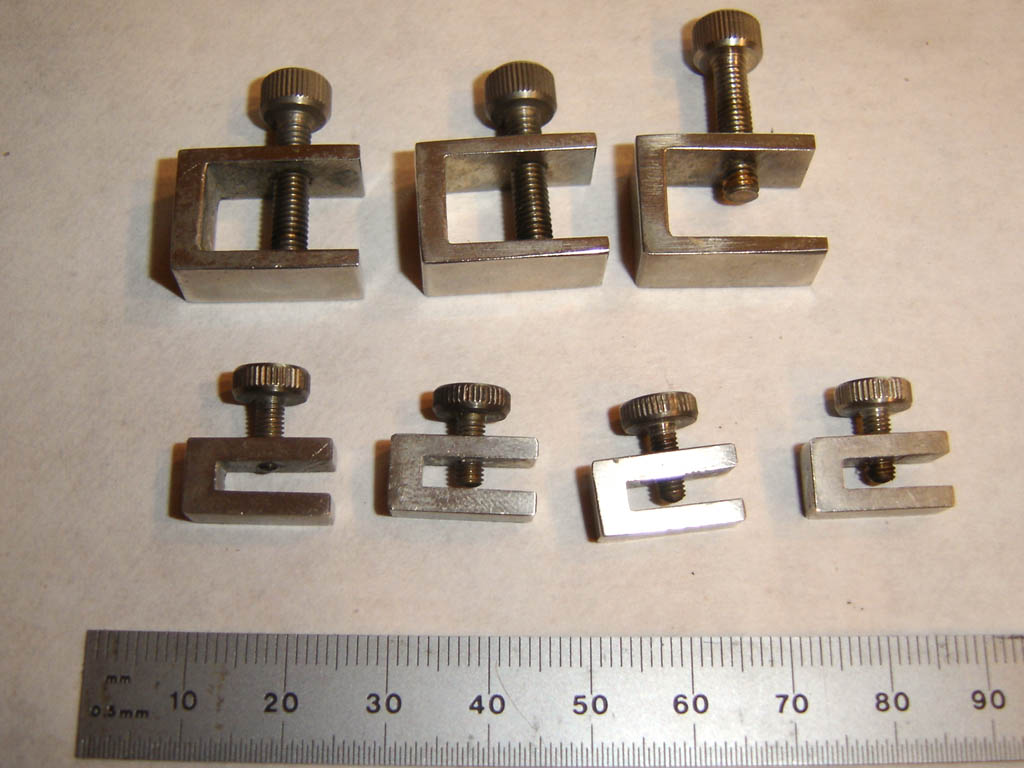

Spline stack clamps(?) Large opening 10mm, small 3.2mm opening. |
|

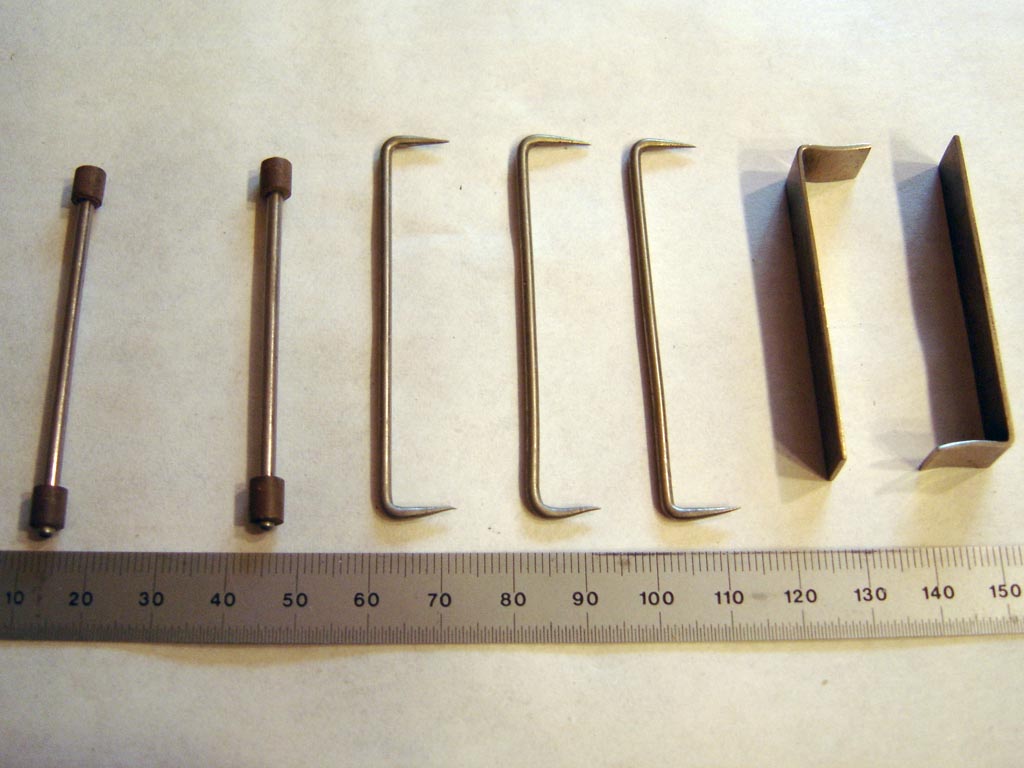

unknown roller, tack/dogs, l-brackets. I suspect some detail will be
found in the patents.
dogs, 60mm long, 2mm dia. wire
L brackets 51mm x 12mm x 1mm thick.
rollers 60mm long, 2.5mm dia. 5mm dia. rubber tires.
|
|

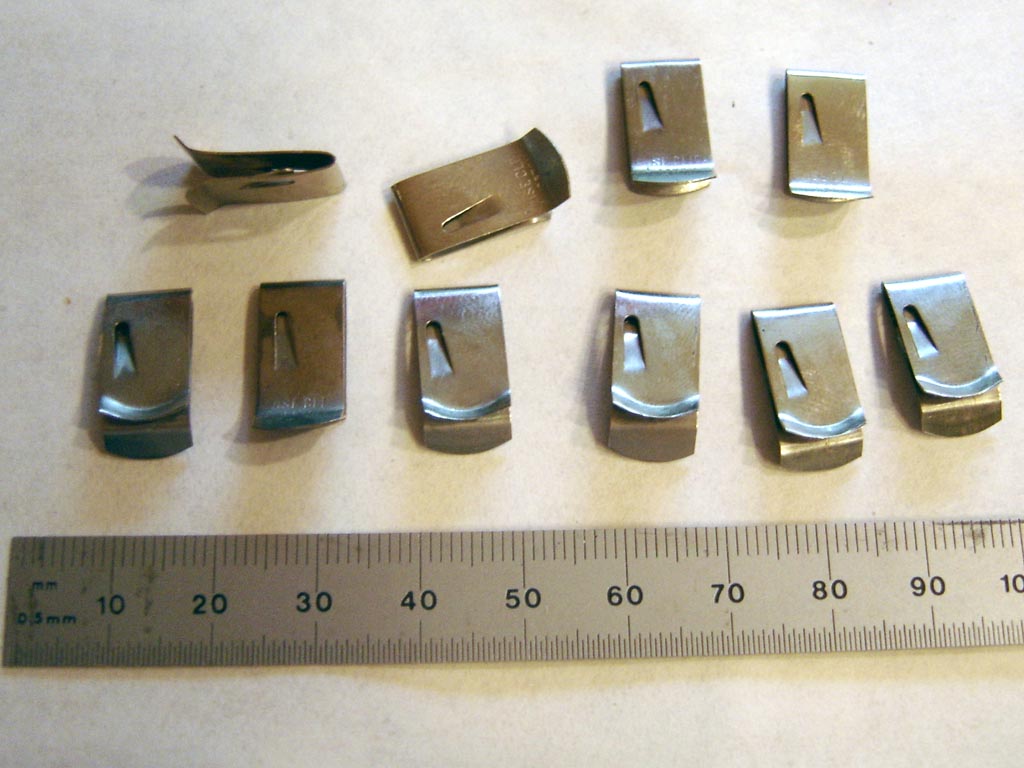

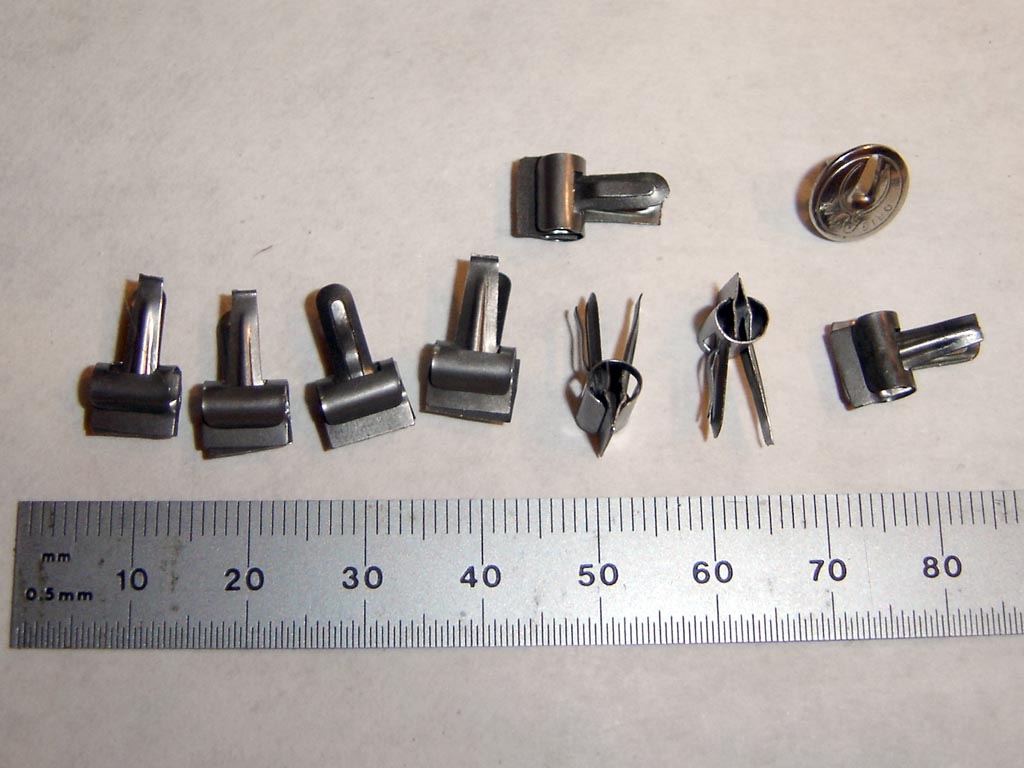

10 thin clamps, labelled (v)"ise cli"(p) "cstc" |
|
10 paper clips, 7.5mm wide. Very cute. |
|
2 tacks for main beam. 12mm head, 2.9mm thick head

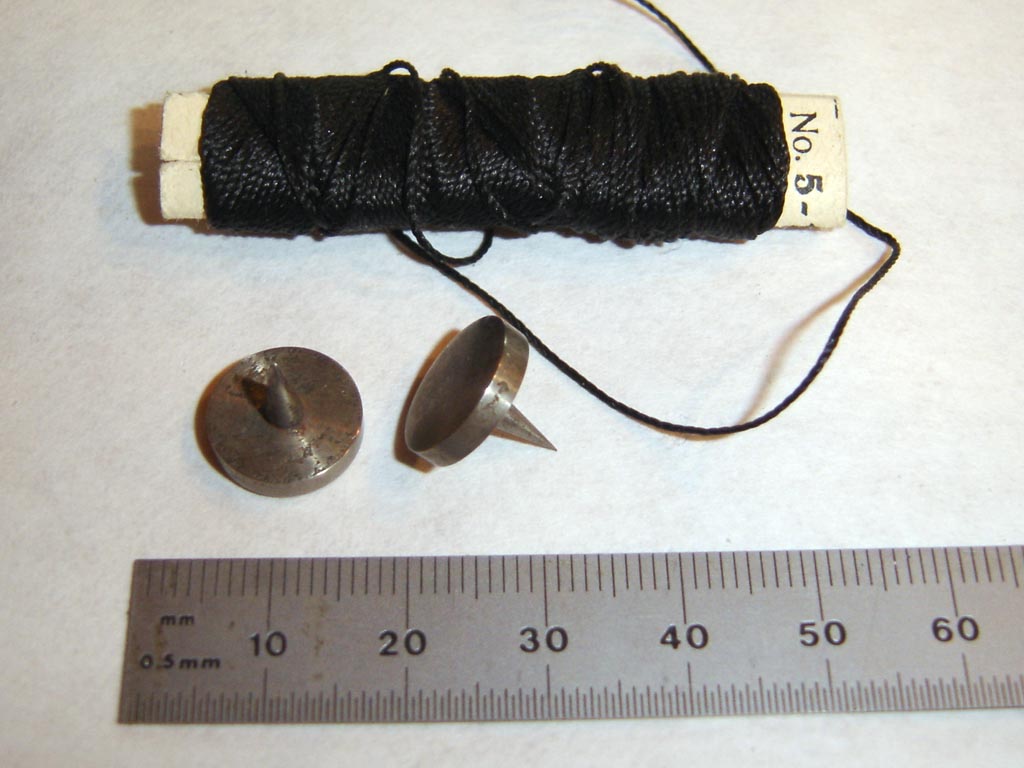

Thread, marked "Farbe:", "No 5 - 10 meter"
|
|

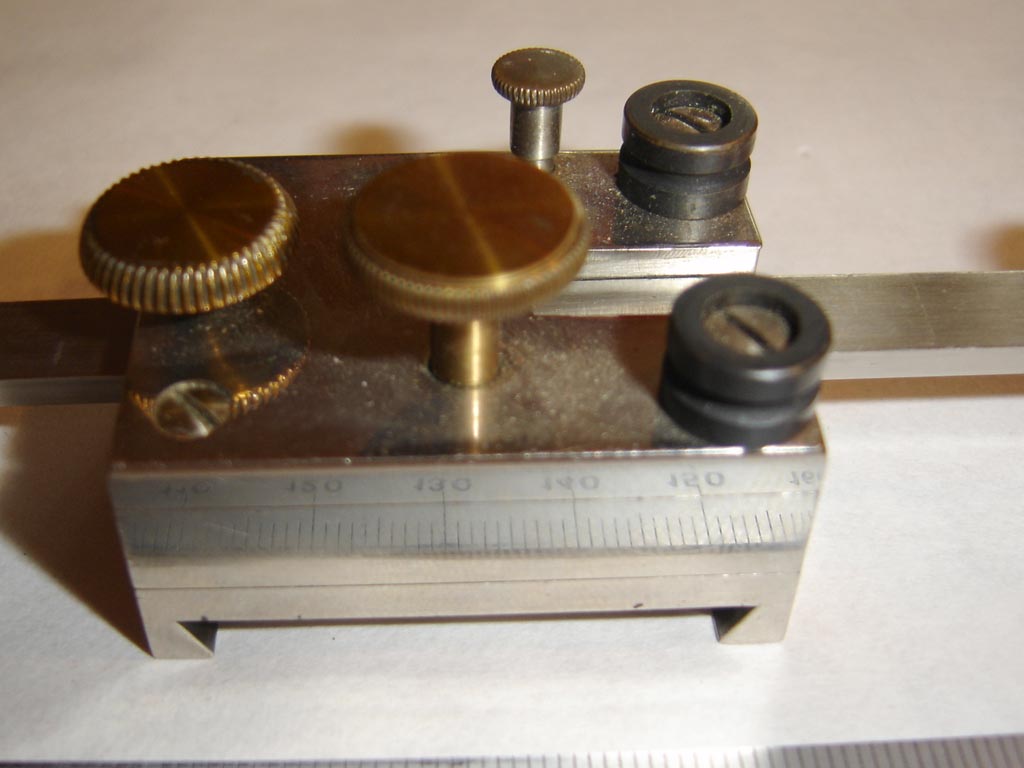

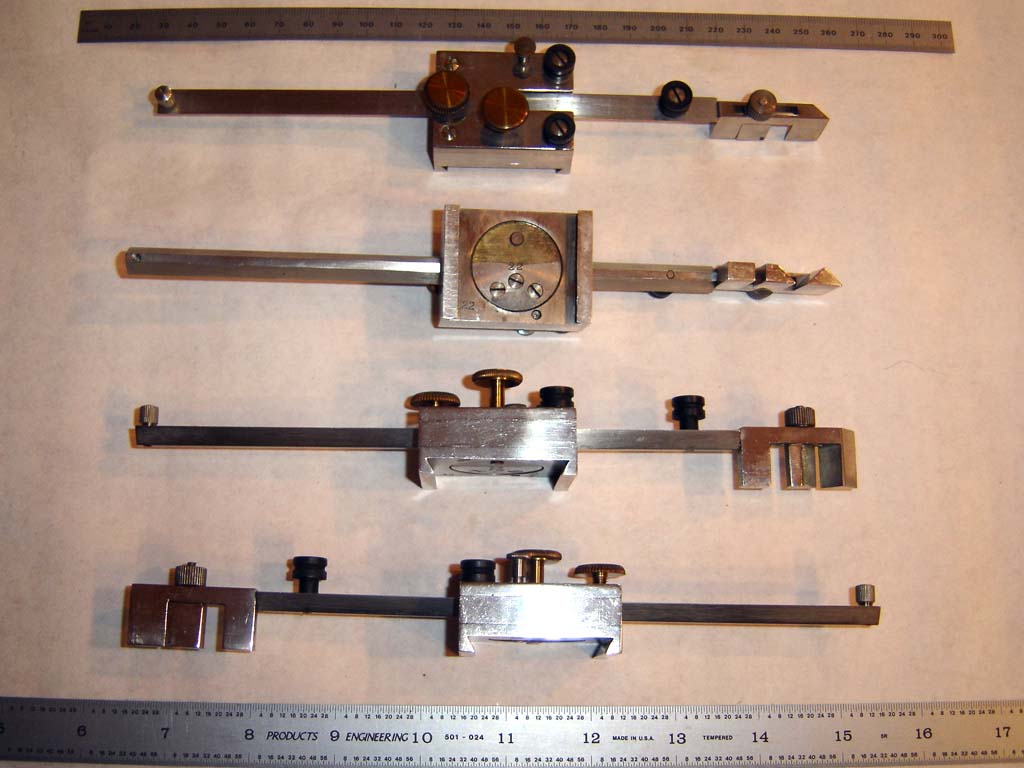

eight continostat arm units. 6 short 130mm travel, 2 long 250mm travel
short ones stamped 9,10,11,13,19,22
long ones stamped 1,32
blocks are plated brass.
|
|

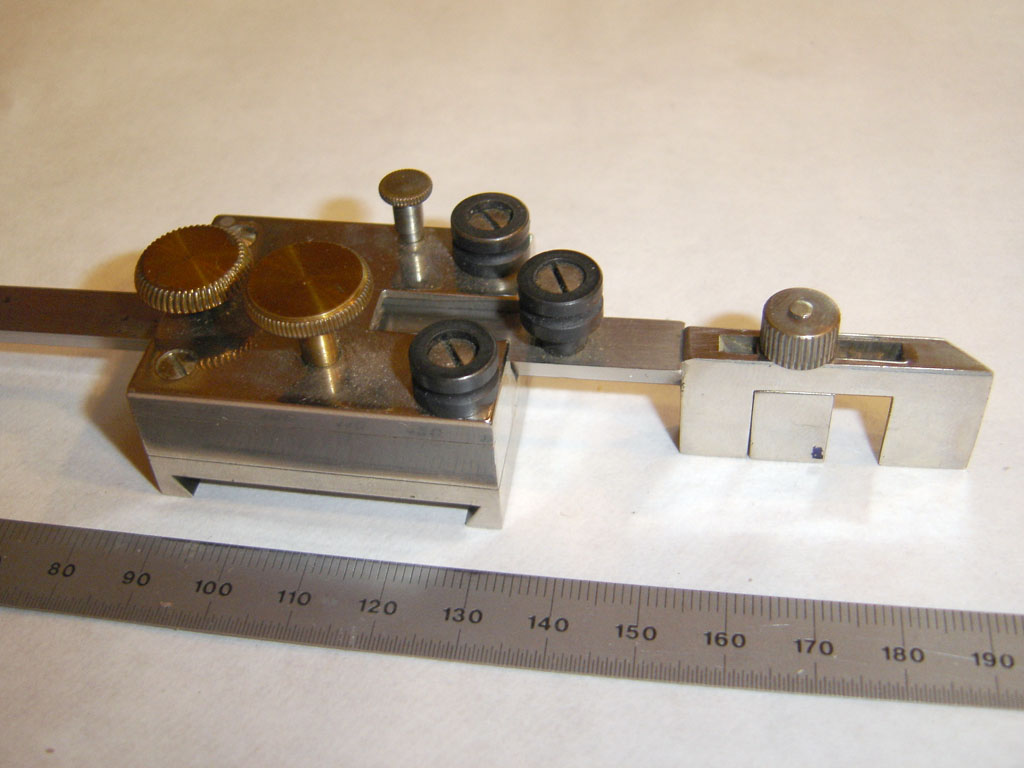

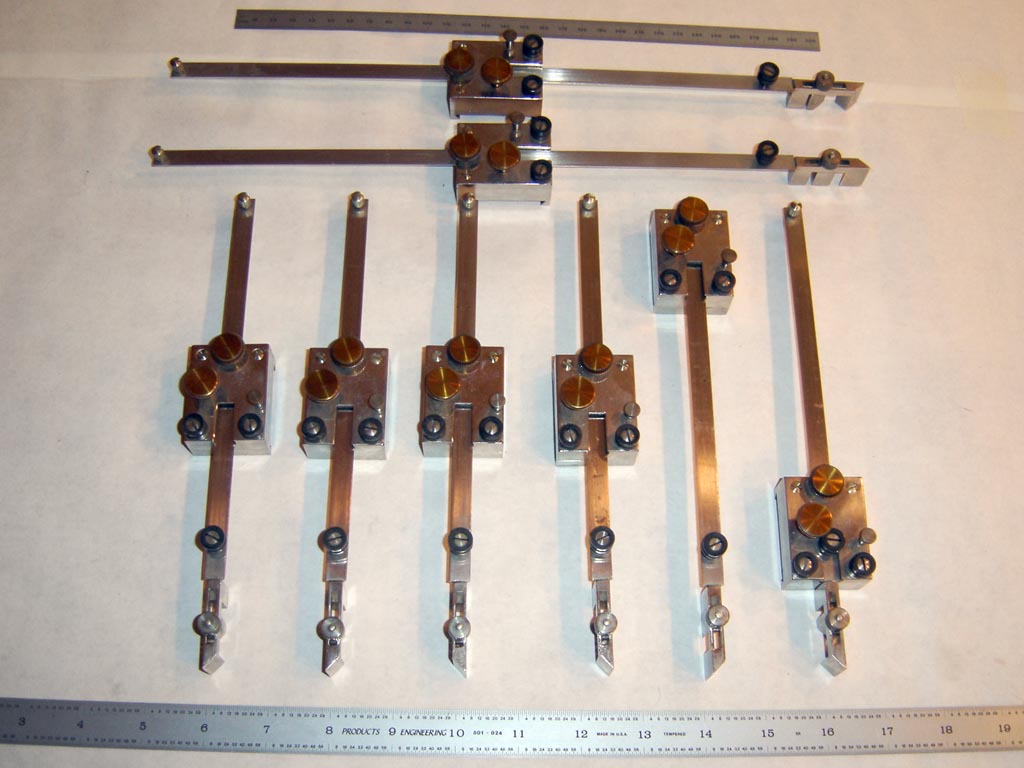

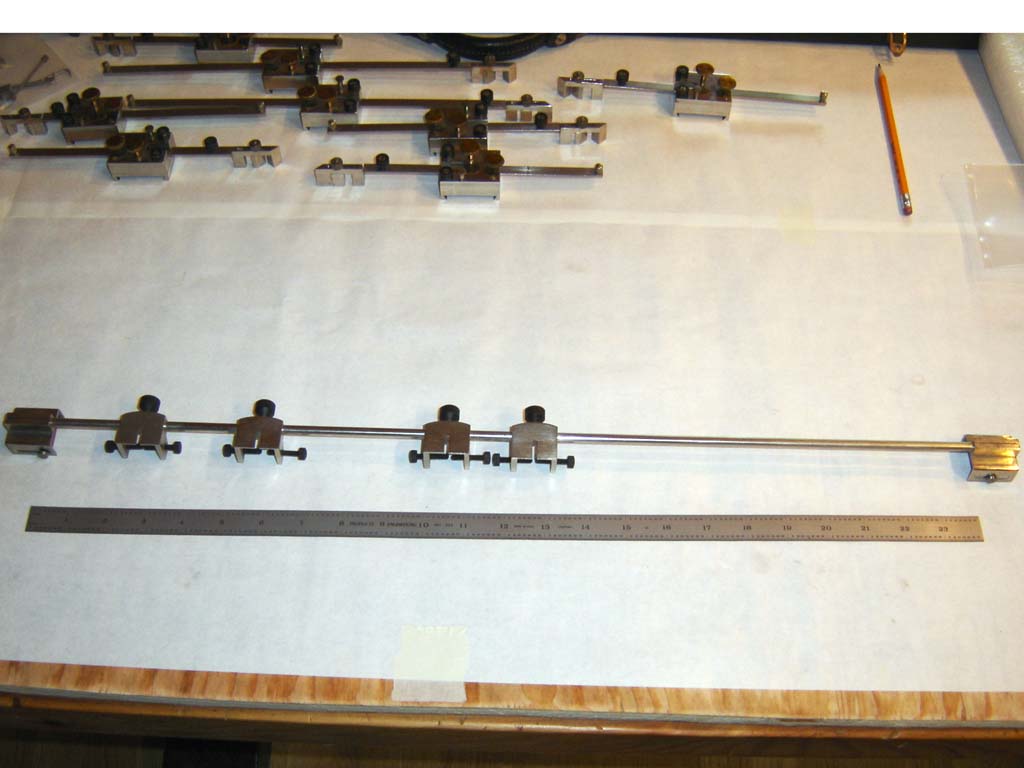

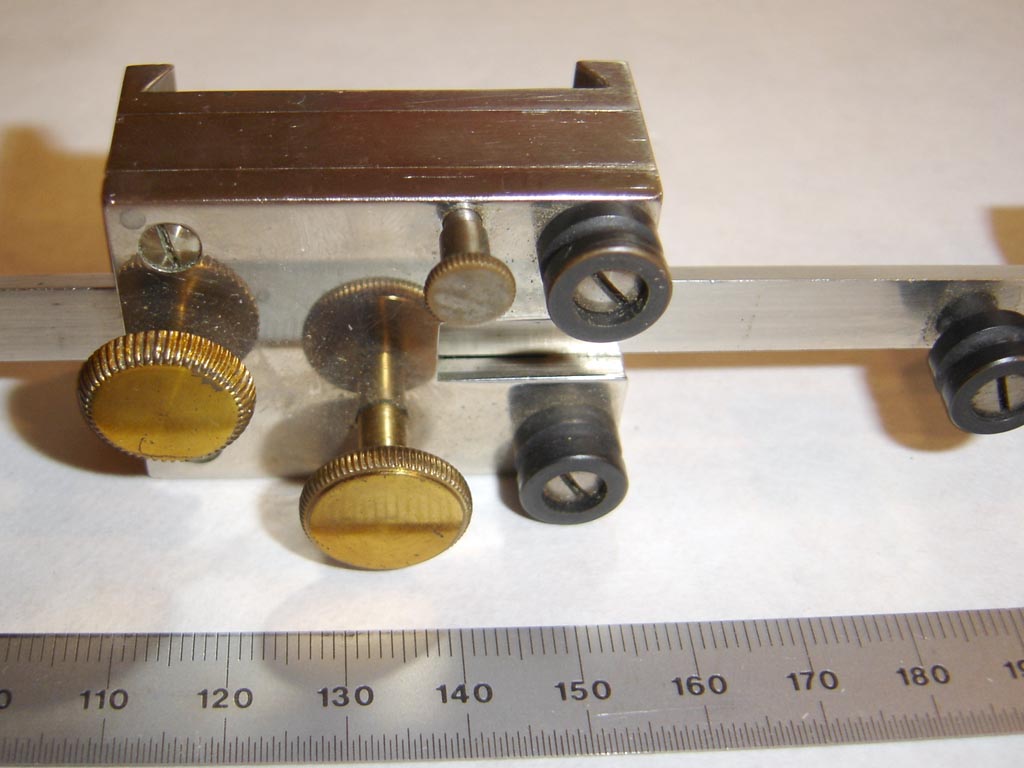

4 views. |
|

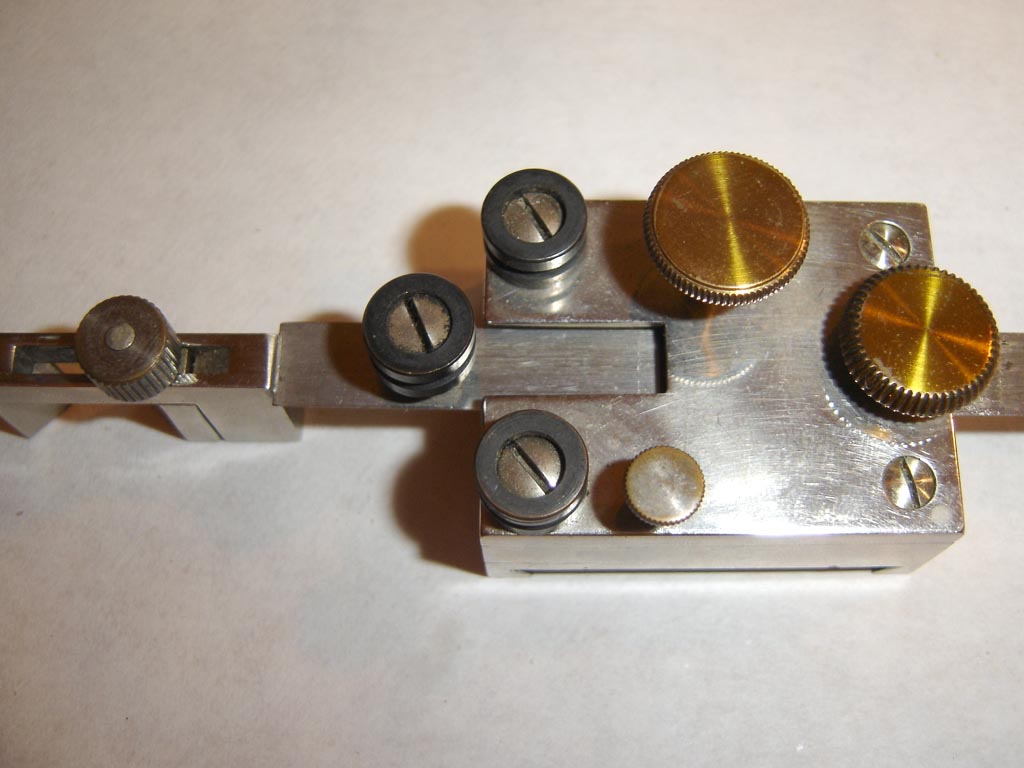

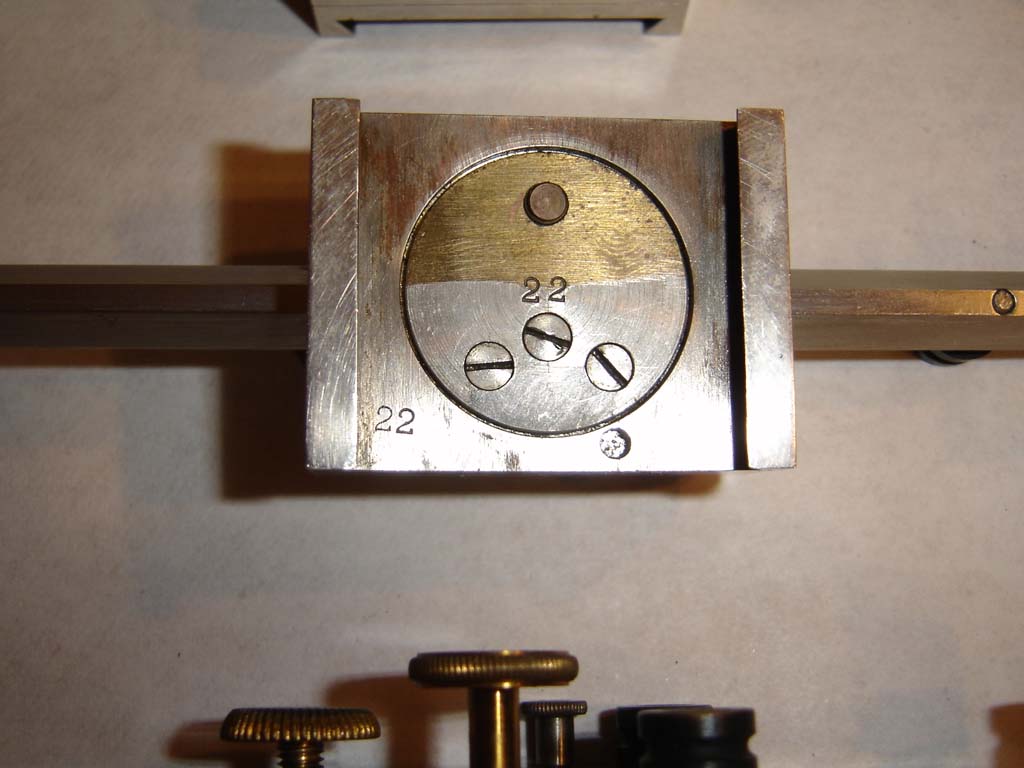

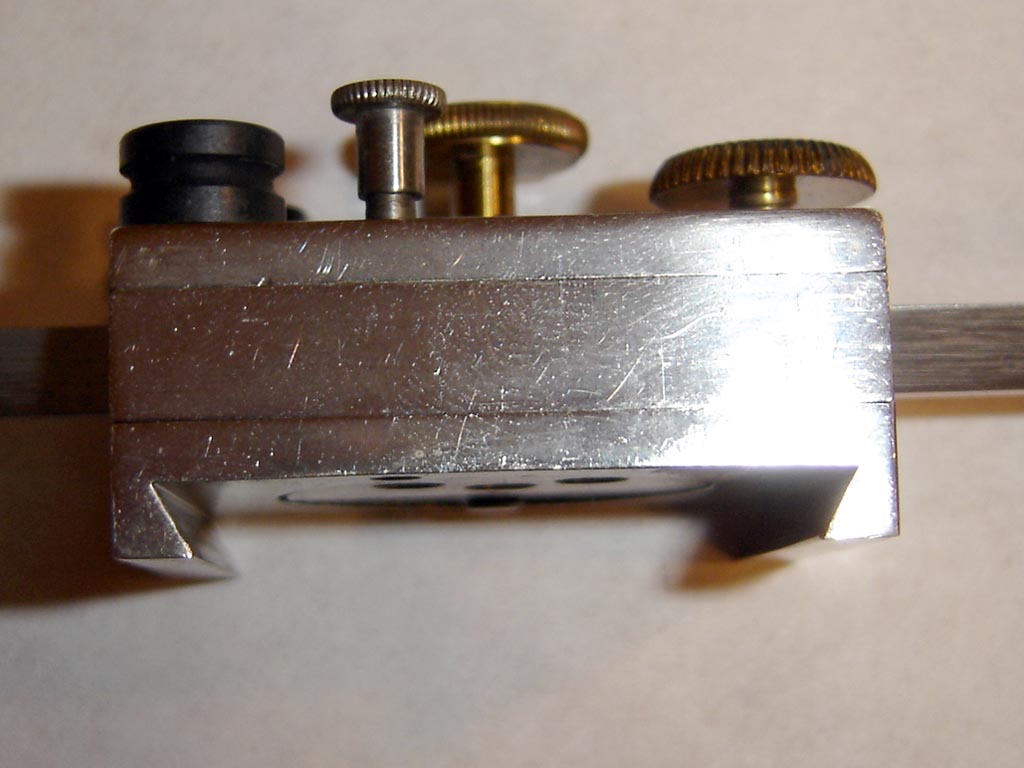

closeup of stamp marks and underside. |
|

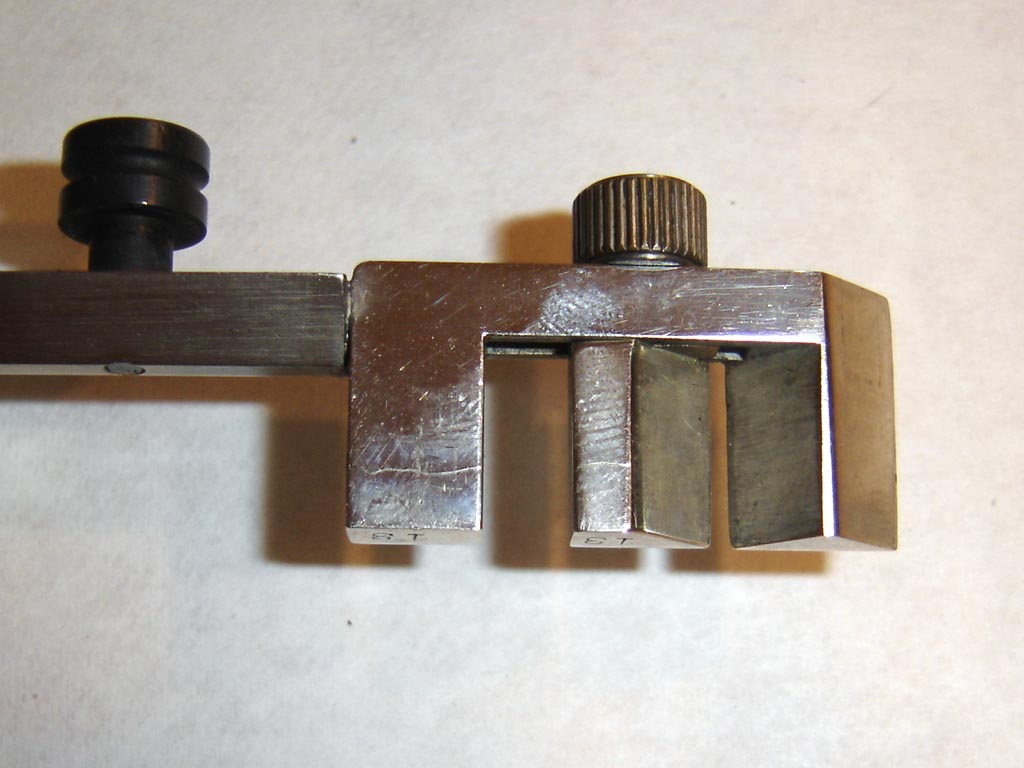

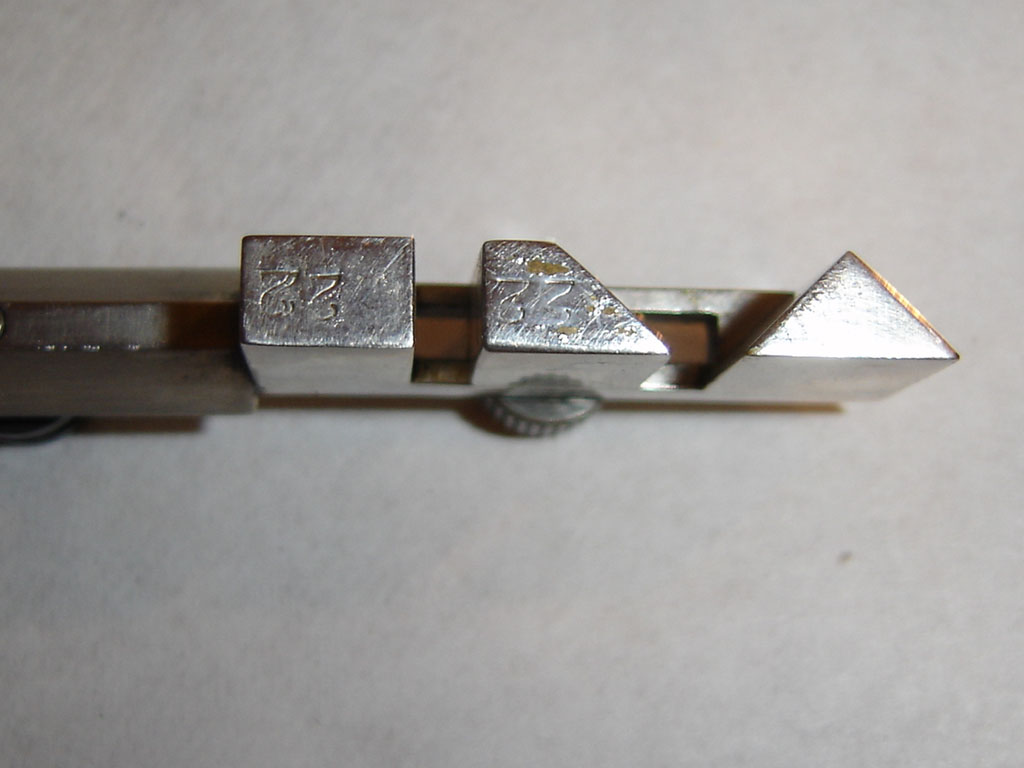

The knife edge has a 7mm opening. |
|
detail |
|
dovetail is 60 degrees |
|
closeup |
|
closeup, notice little pullies |
|
closeup |
|
closeup |
|

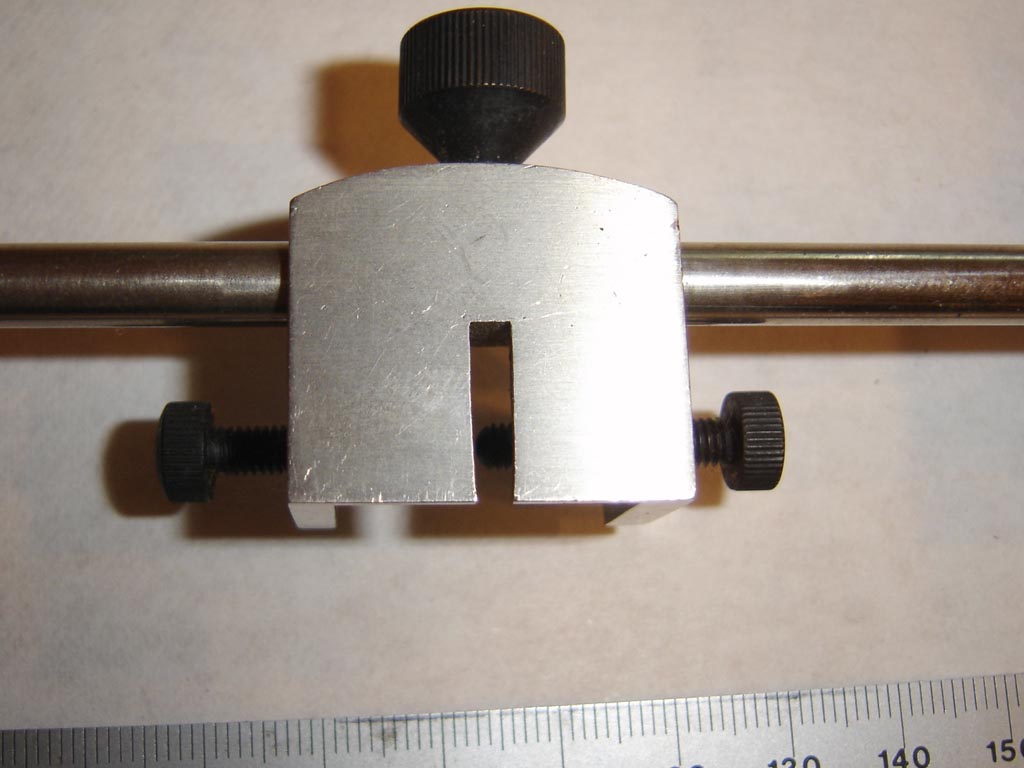

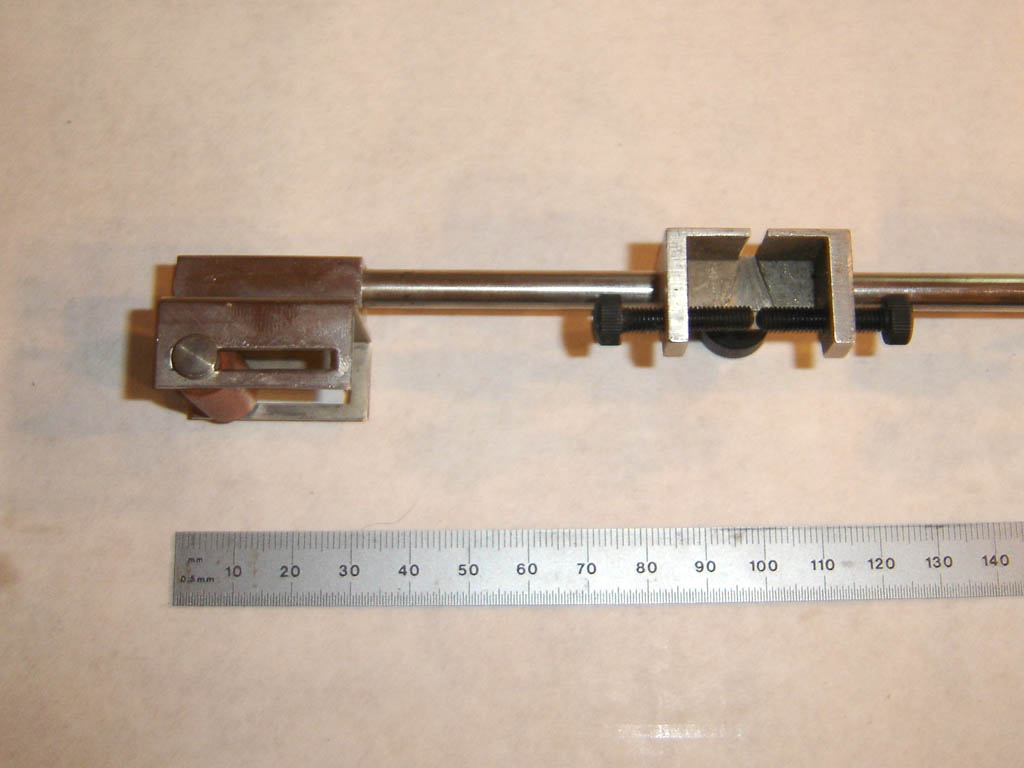

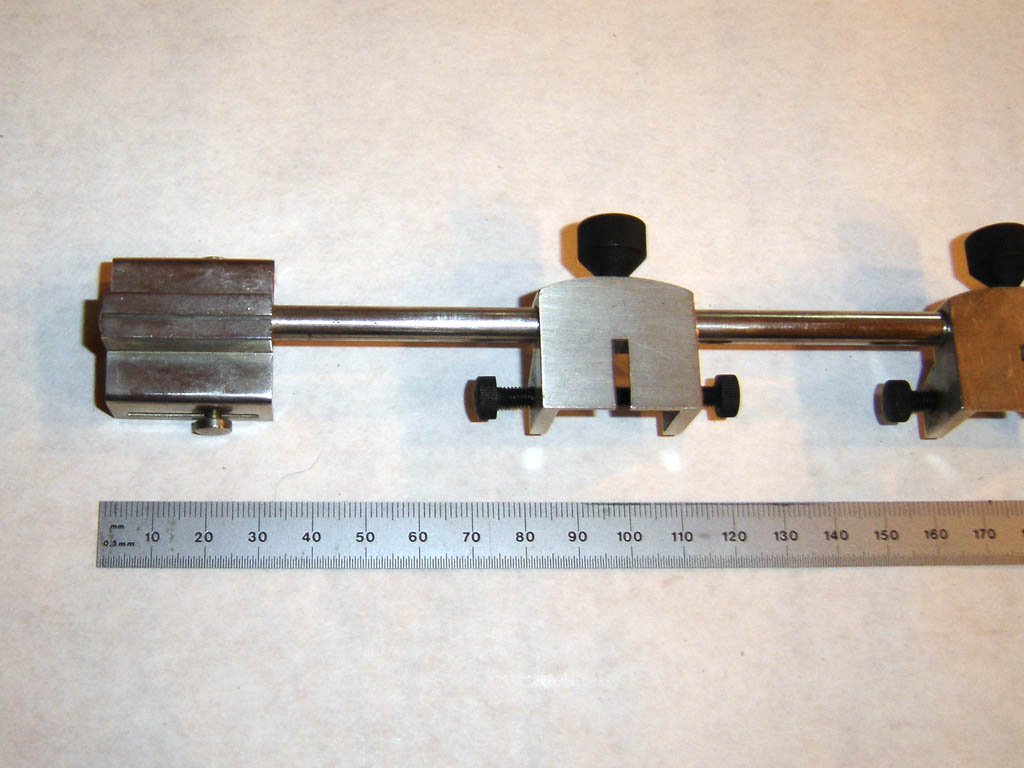

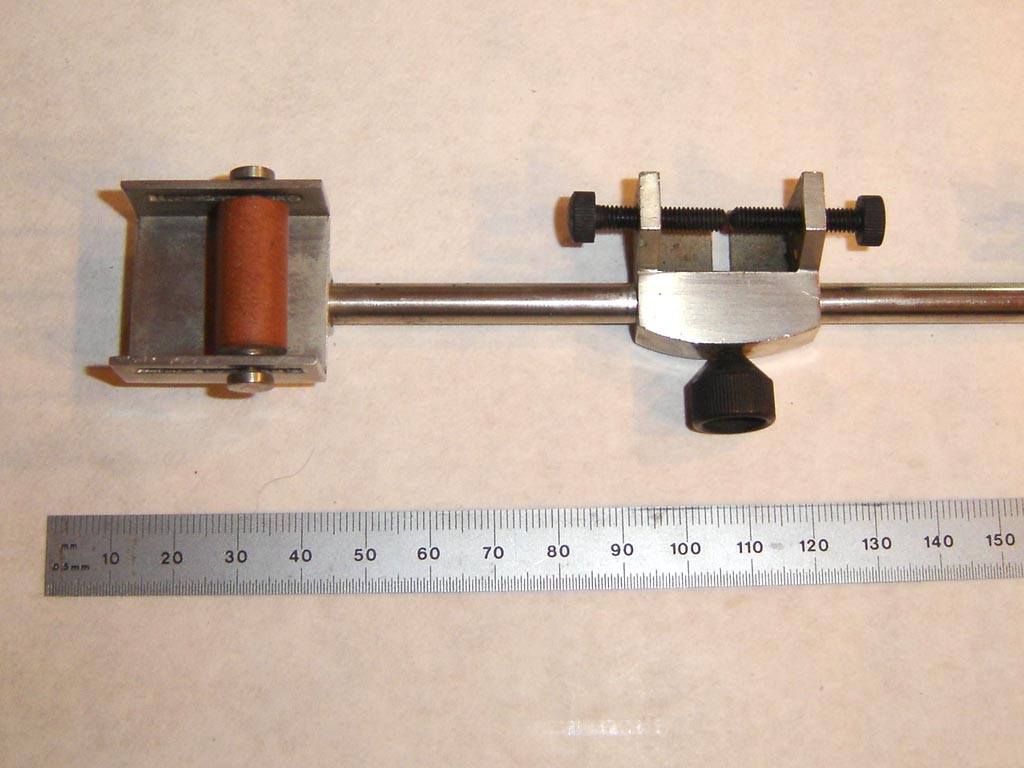

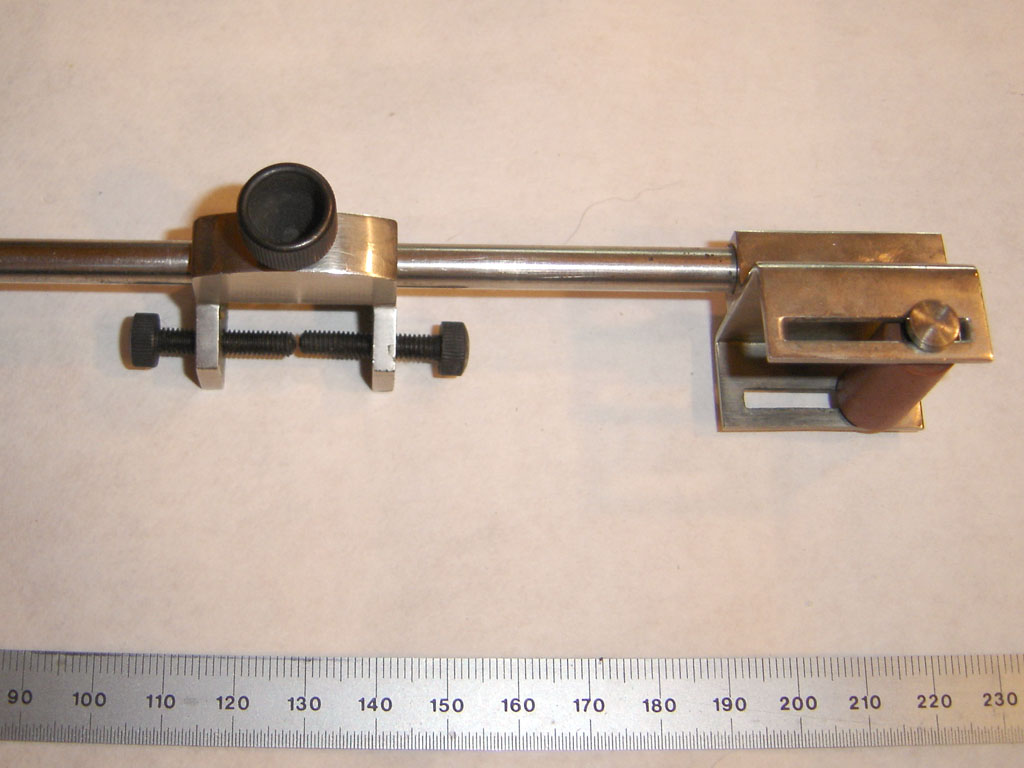

roller thing, shown in use on next picture page. Need to figure out the
name though...

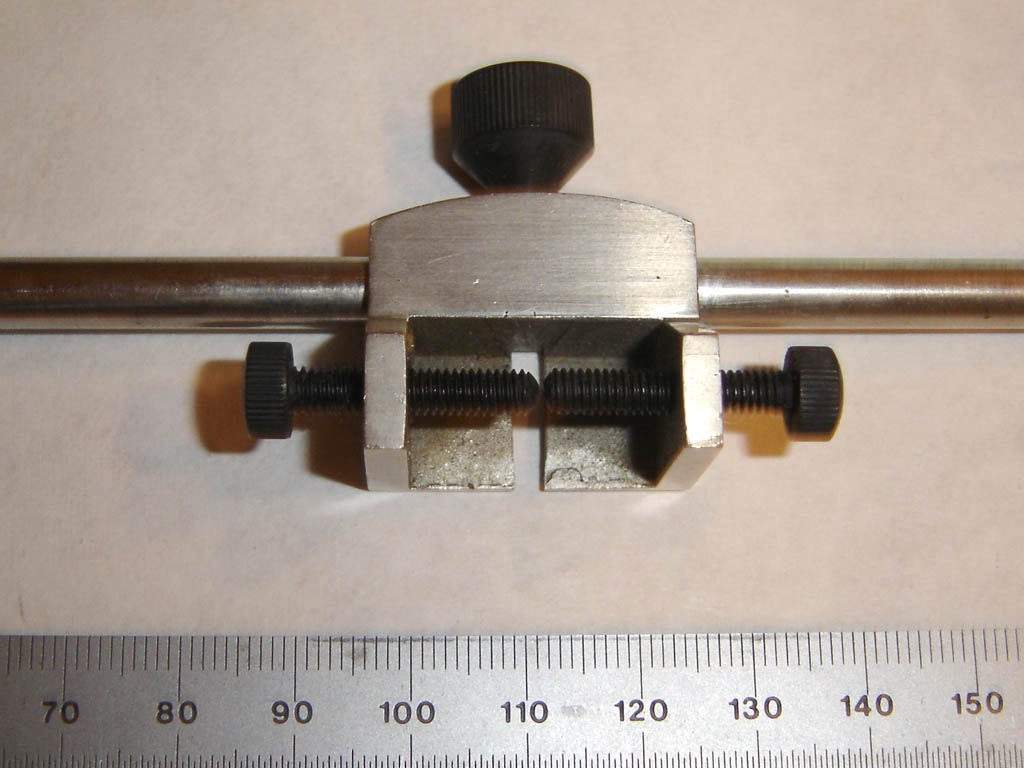

660mm long, 6.5mm dia rod, 23mm wide roller, 10.8mm dia.
|
|
closeup |
|
closeup |
|
closeup |
|
closeup |
|
closeup |
|
closeup |
|
closeup |
